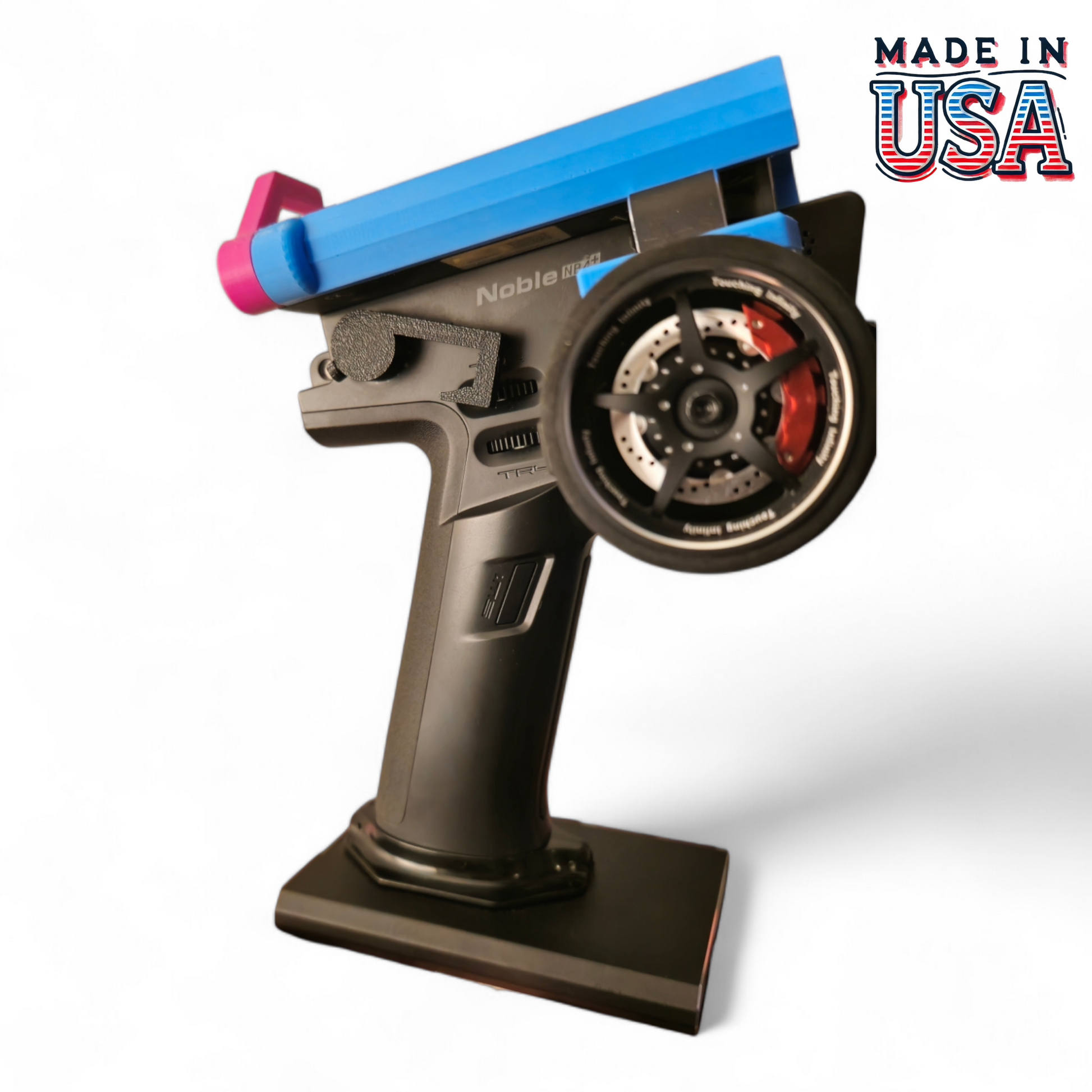

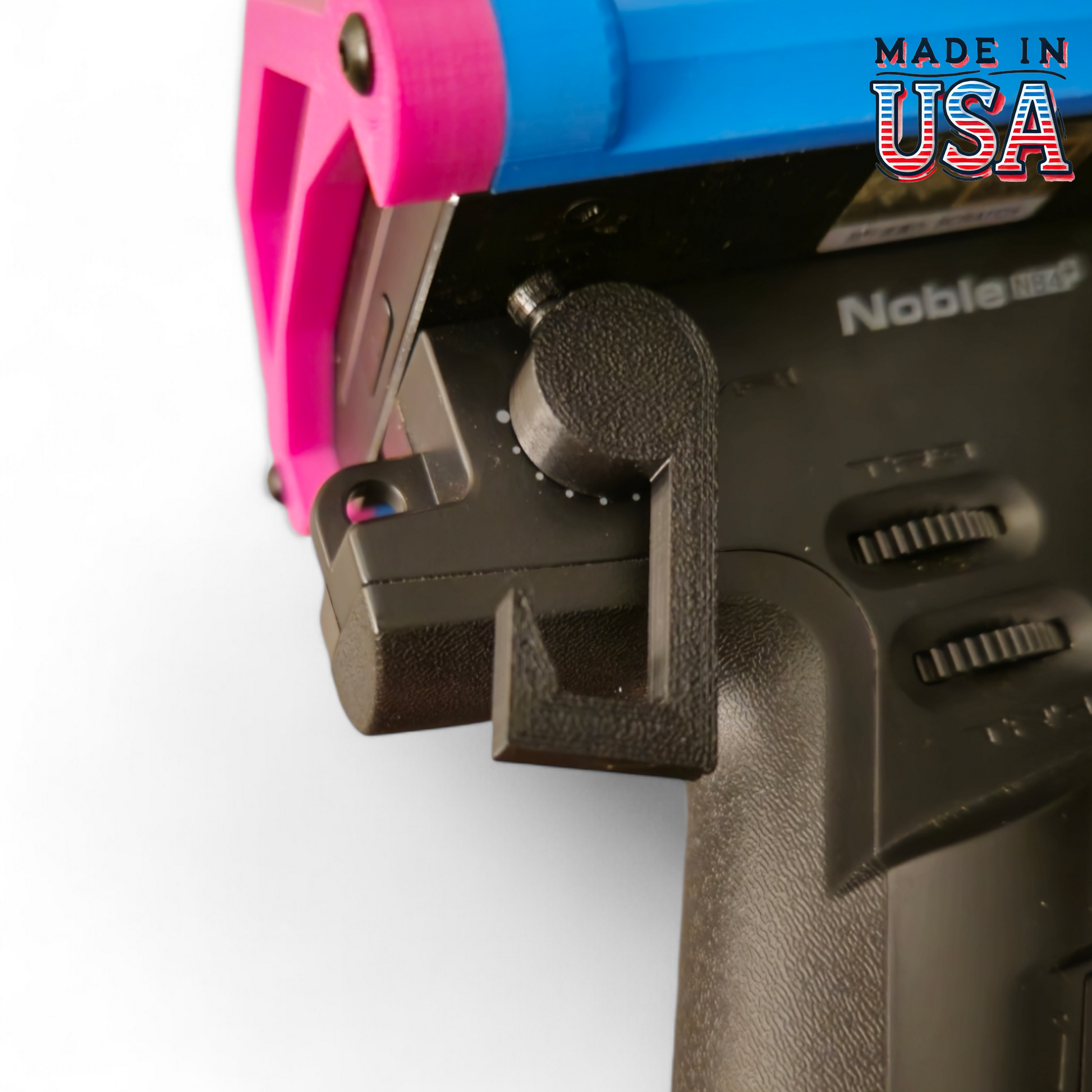

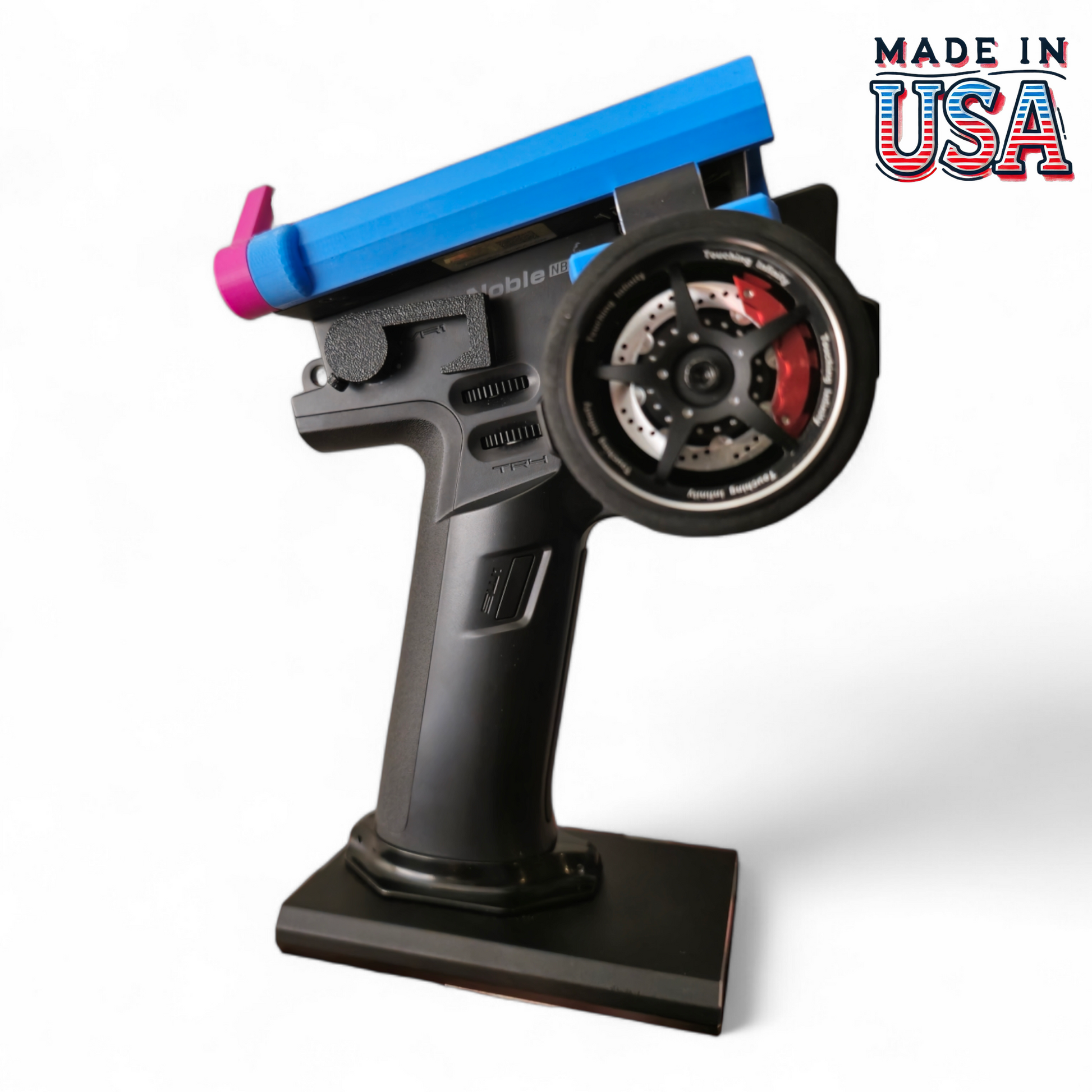

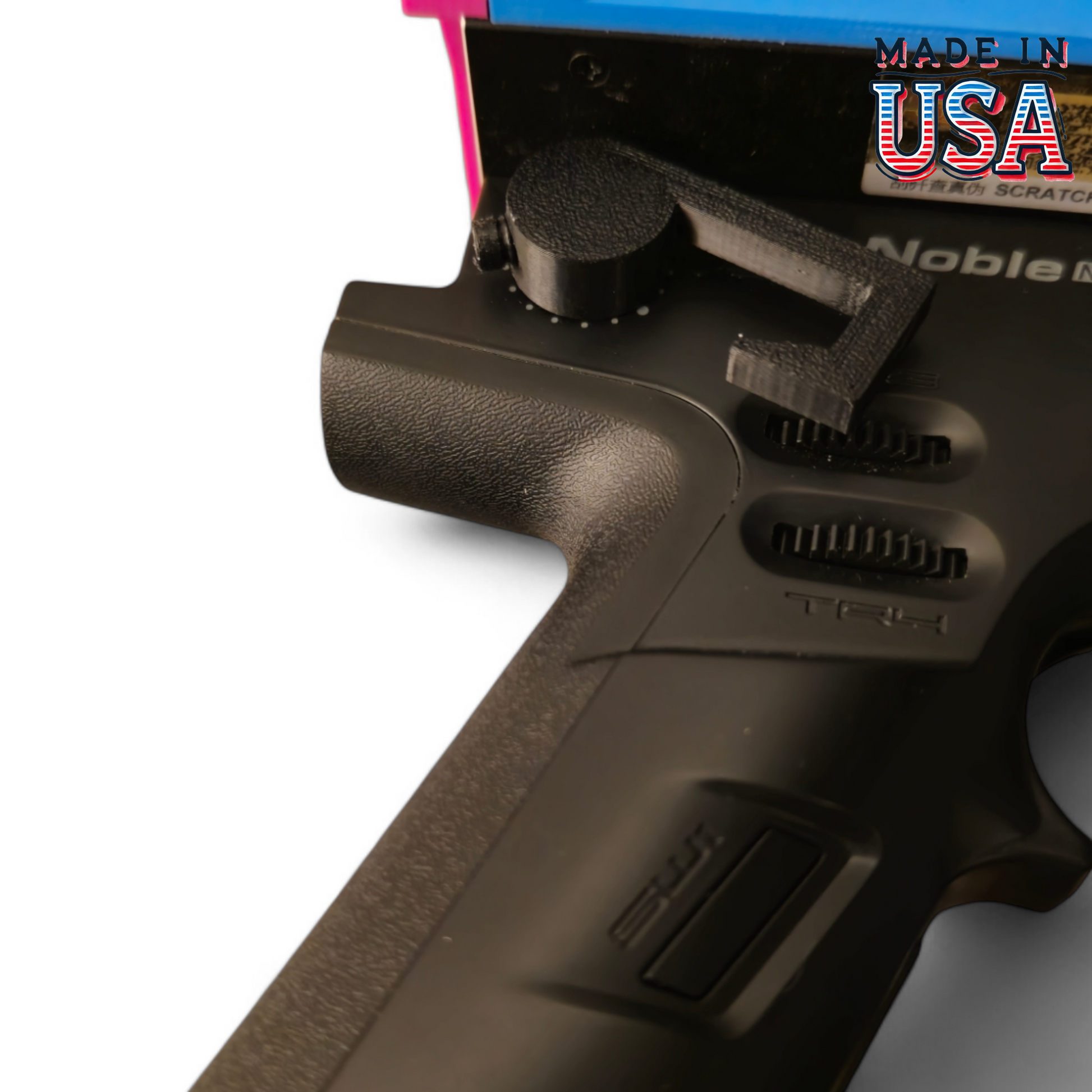

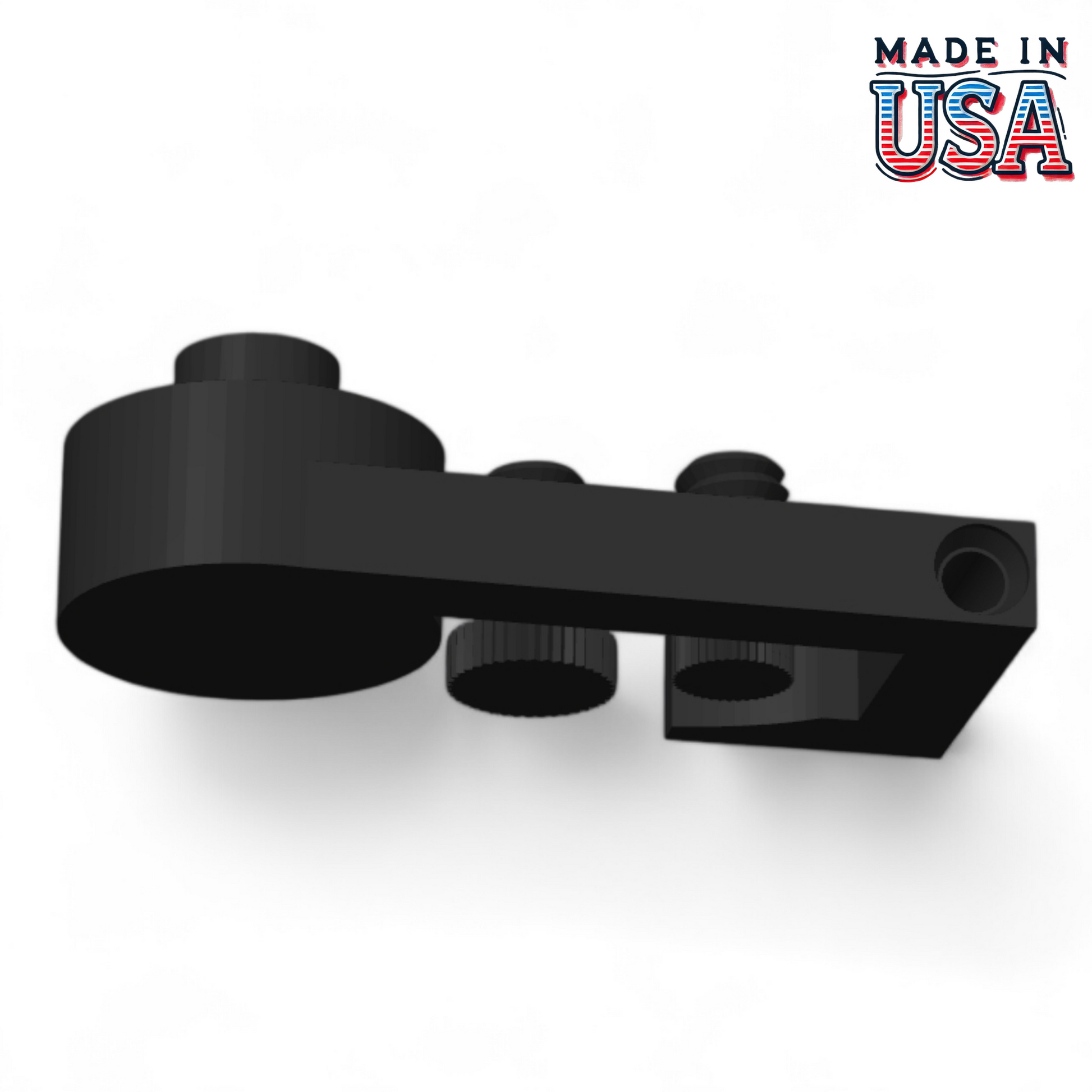

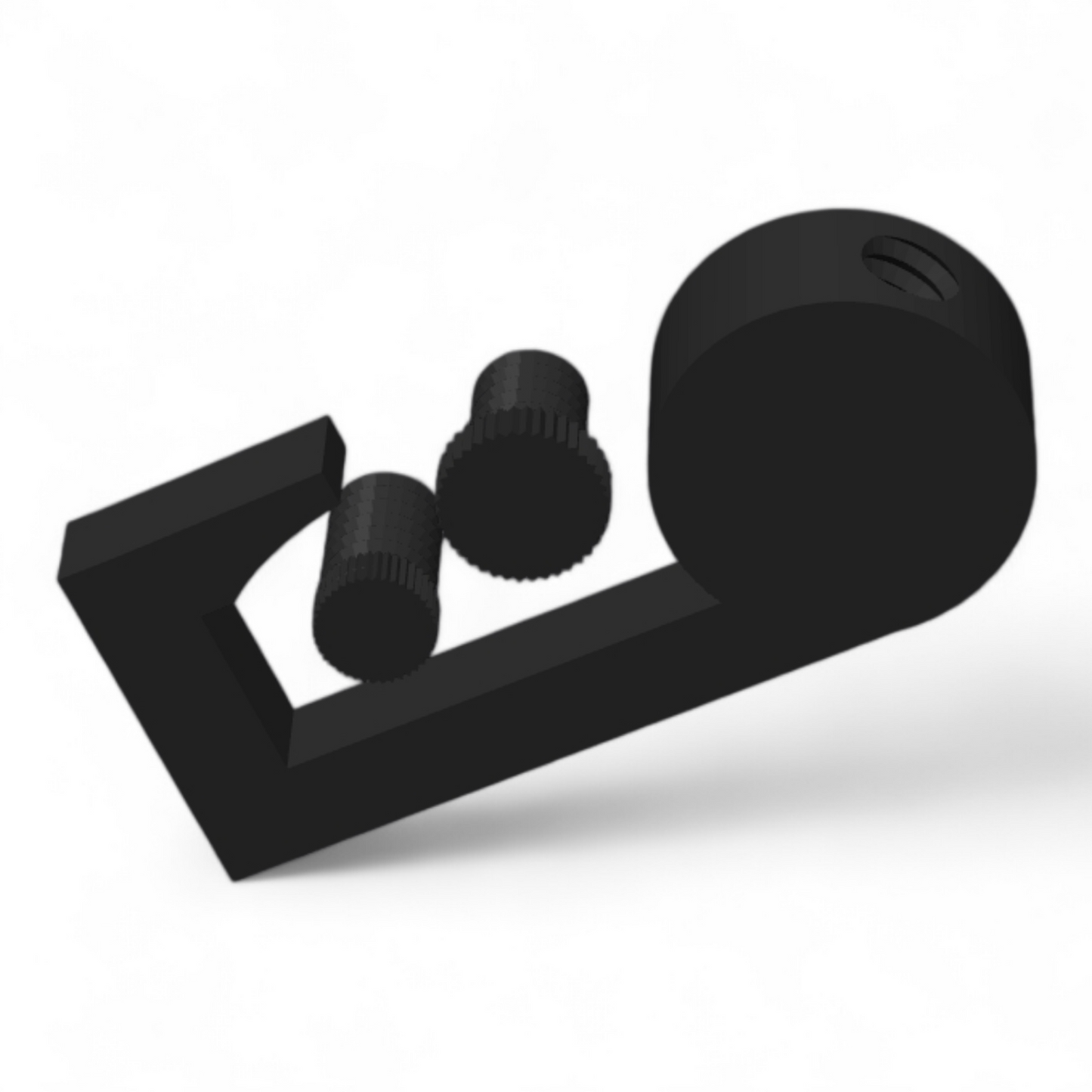

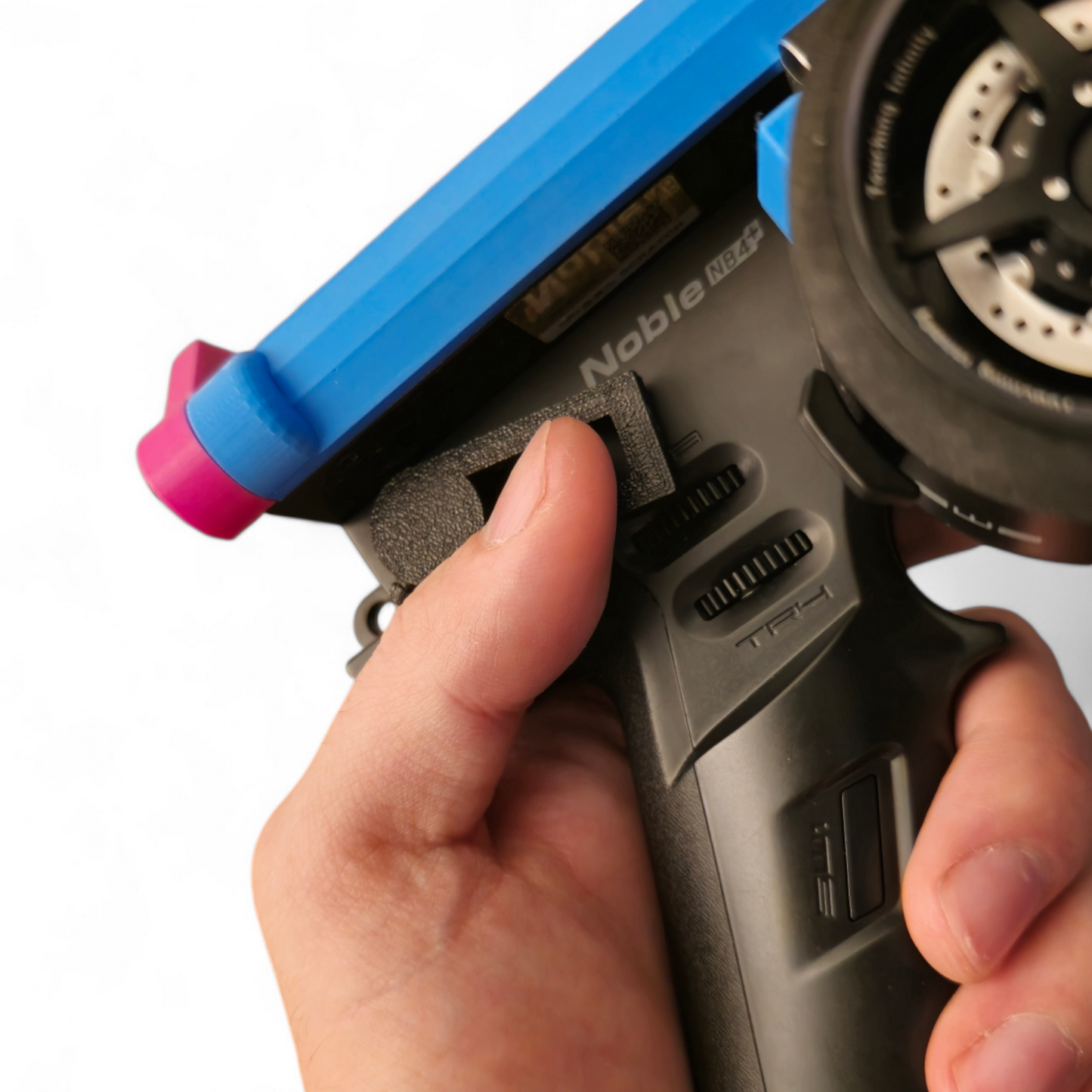

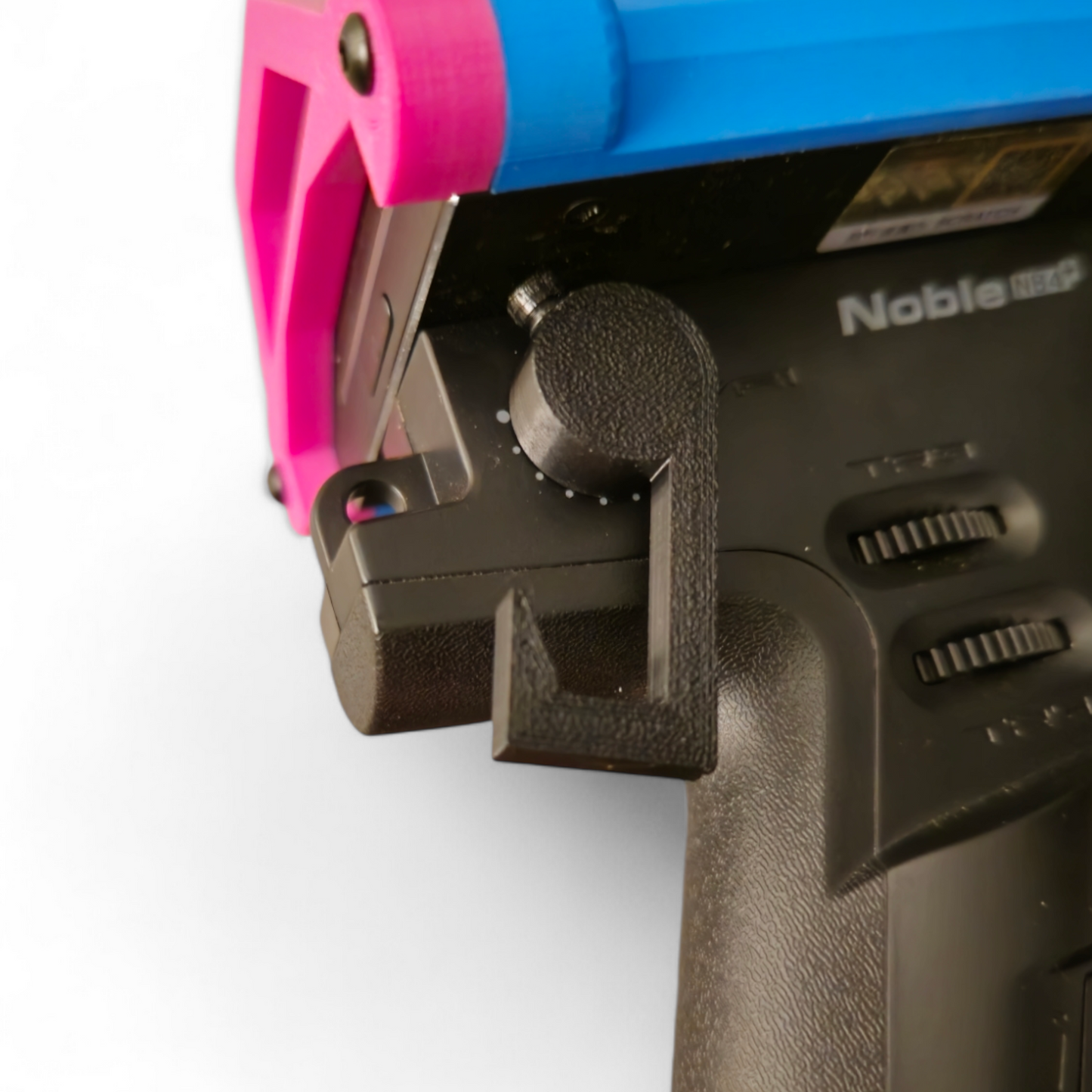

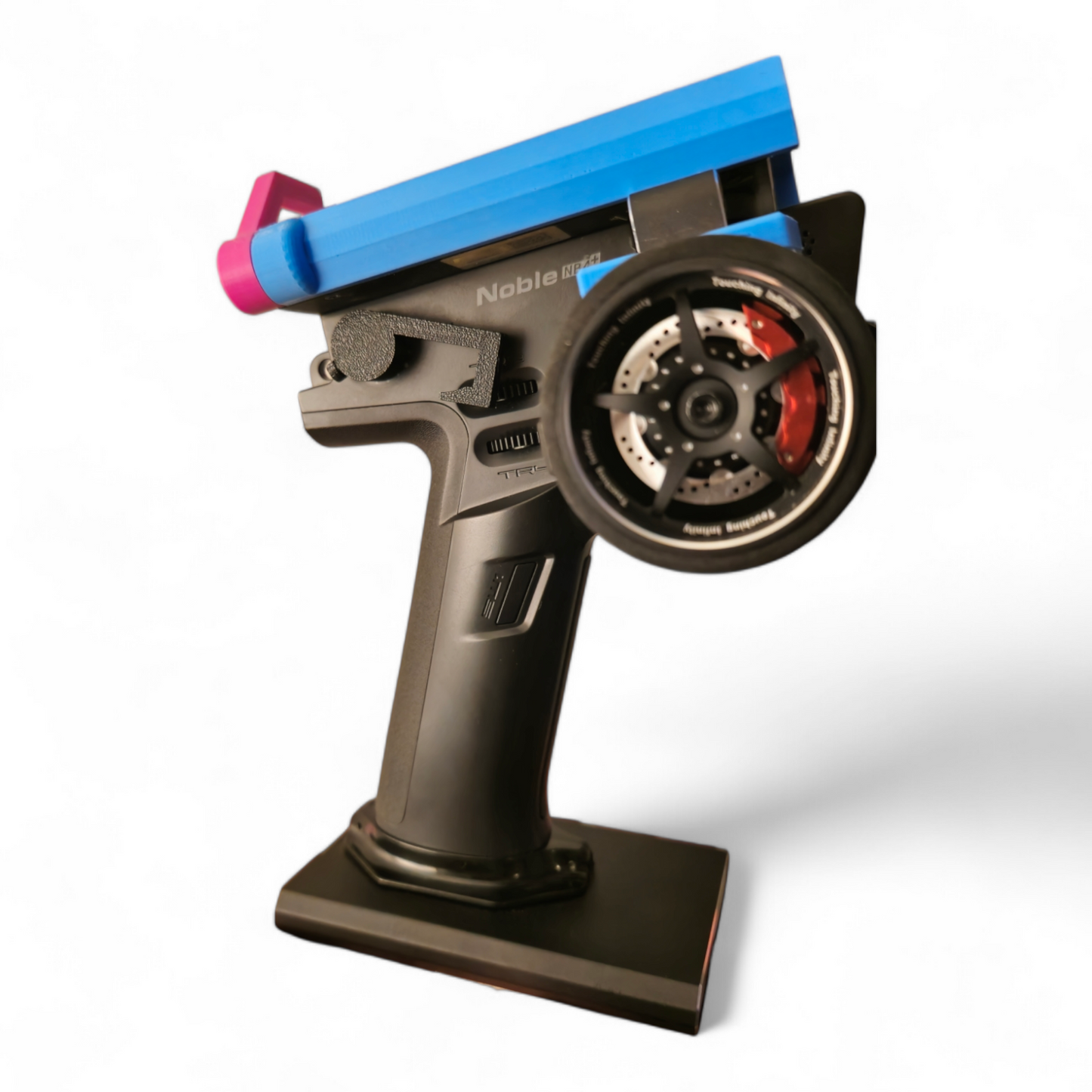

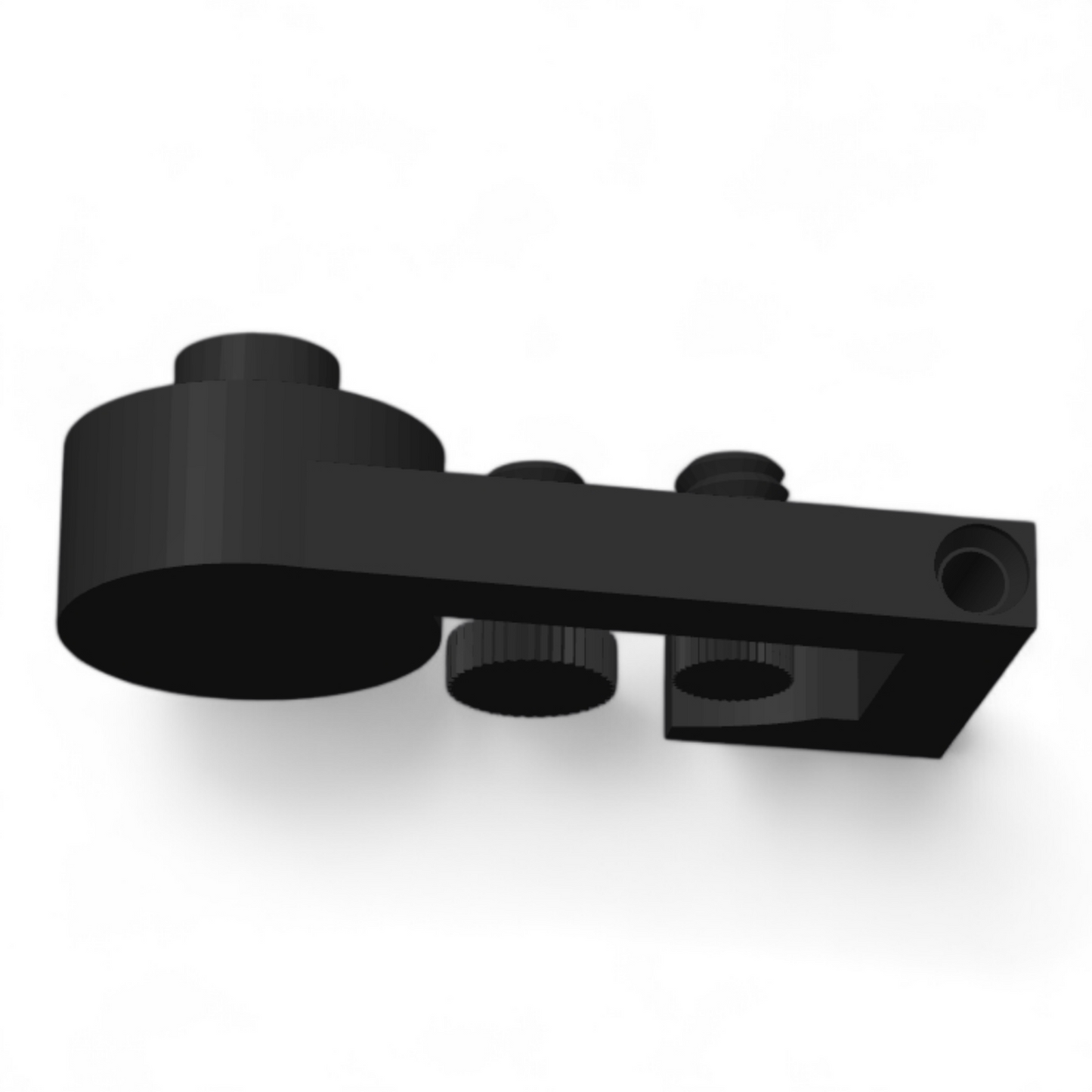

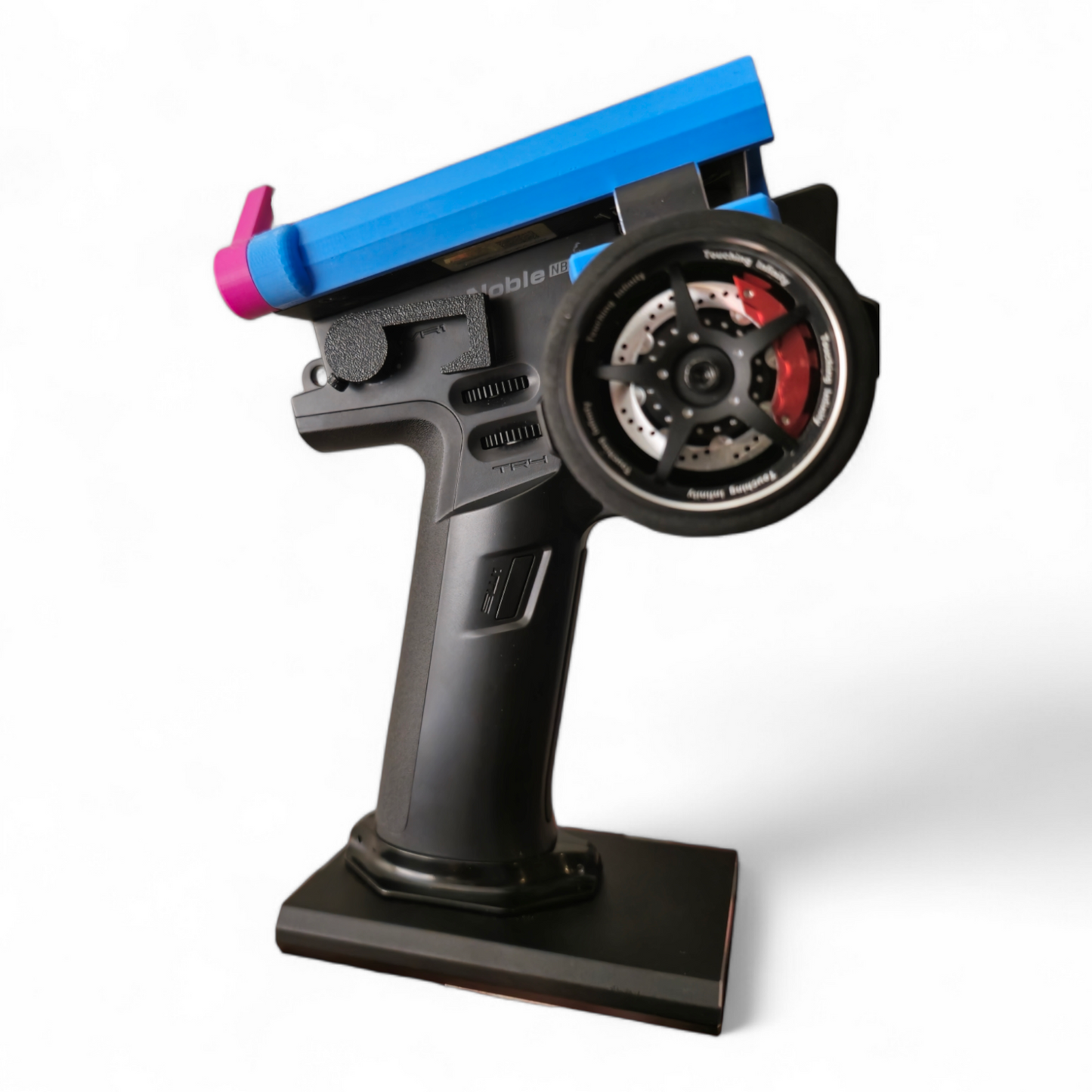

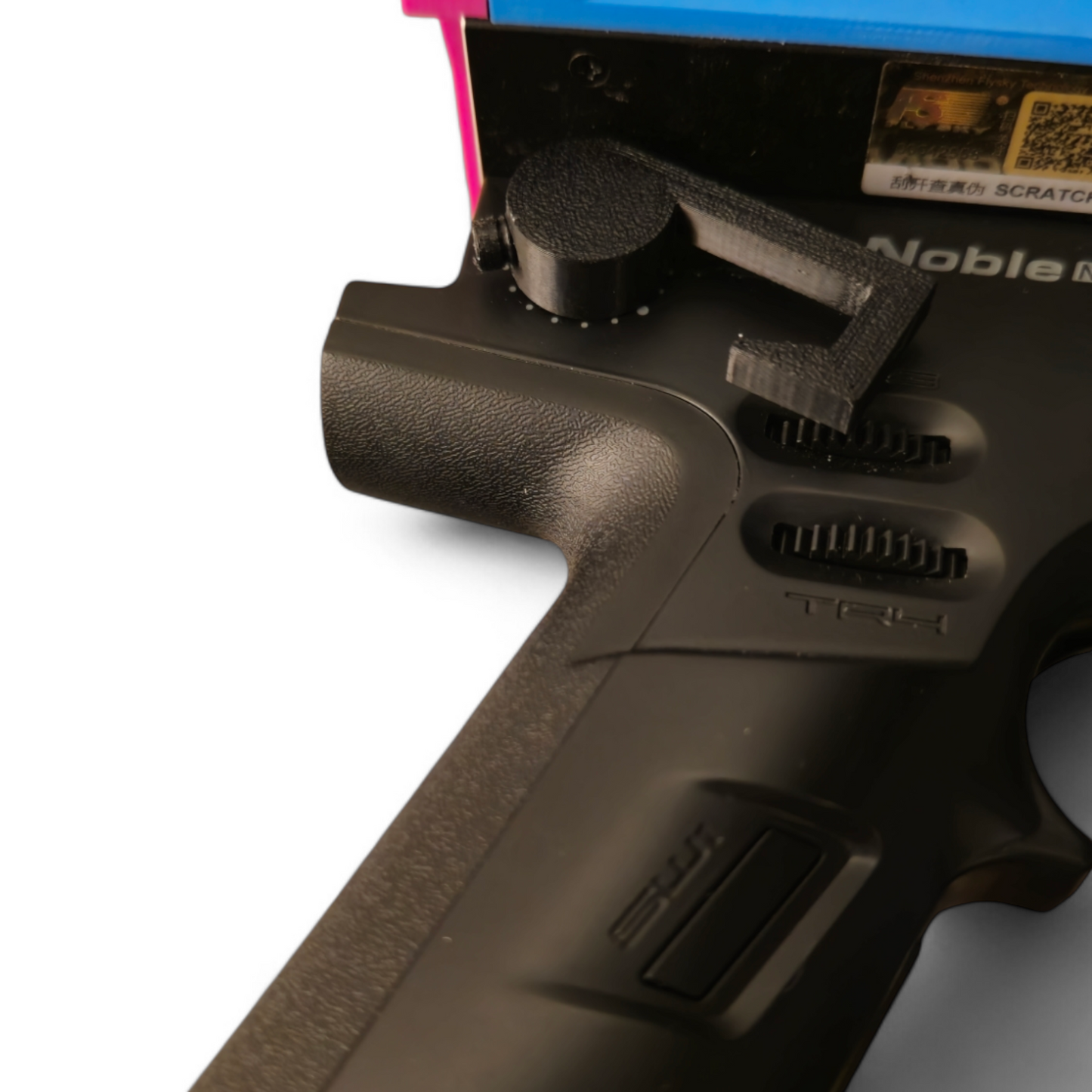

Flysky NB4 Noble Rear Steer Knob

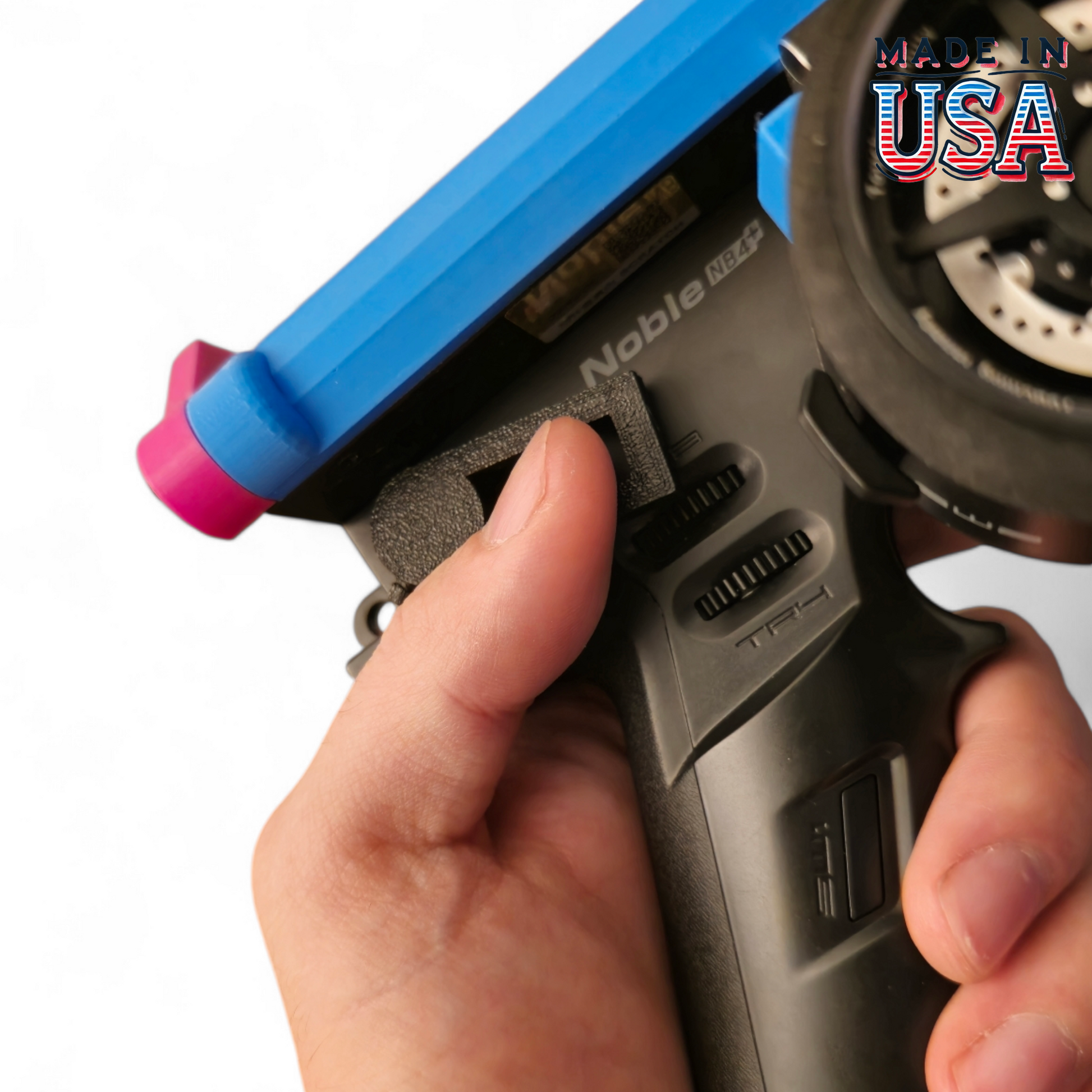

Flysky NB4 Noble Rear Steer Knob – Achieve precise one-handed rear steering while keeping full control of your Flysky NB4, NB4+, or NB4 PRO. Ideal for programmable servos with 255° rotation or more, this knob reduces rotation from 270° to 70° with maxed-out servo and NB4 endpoints, providing faster, more responsive steering and unlocking the potential of using a rear steer knob.

Setup Guide

To use:

1. Servo: Must have 255° rotation or more. Max out its angle limit in the programming software.
2. NB4 Endpoints: Set rear steer endpoints to max in the EPA menu.
3. Knob Rotation: With settings maxed, knob rotation reduces to 70°.

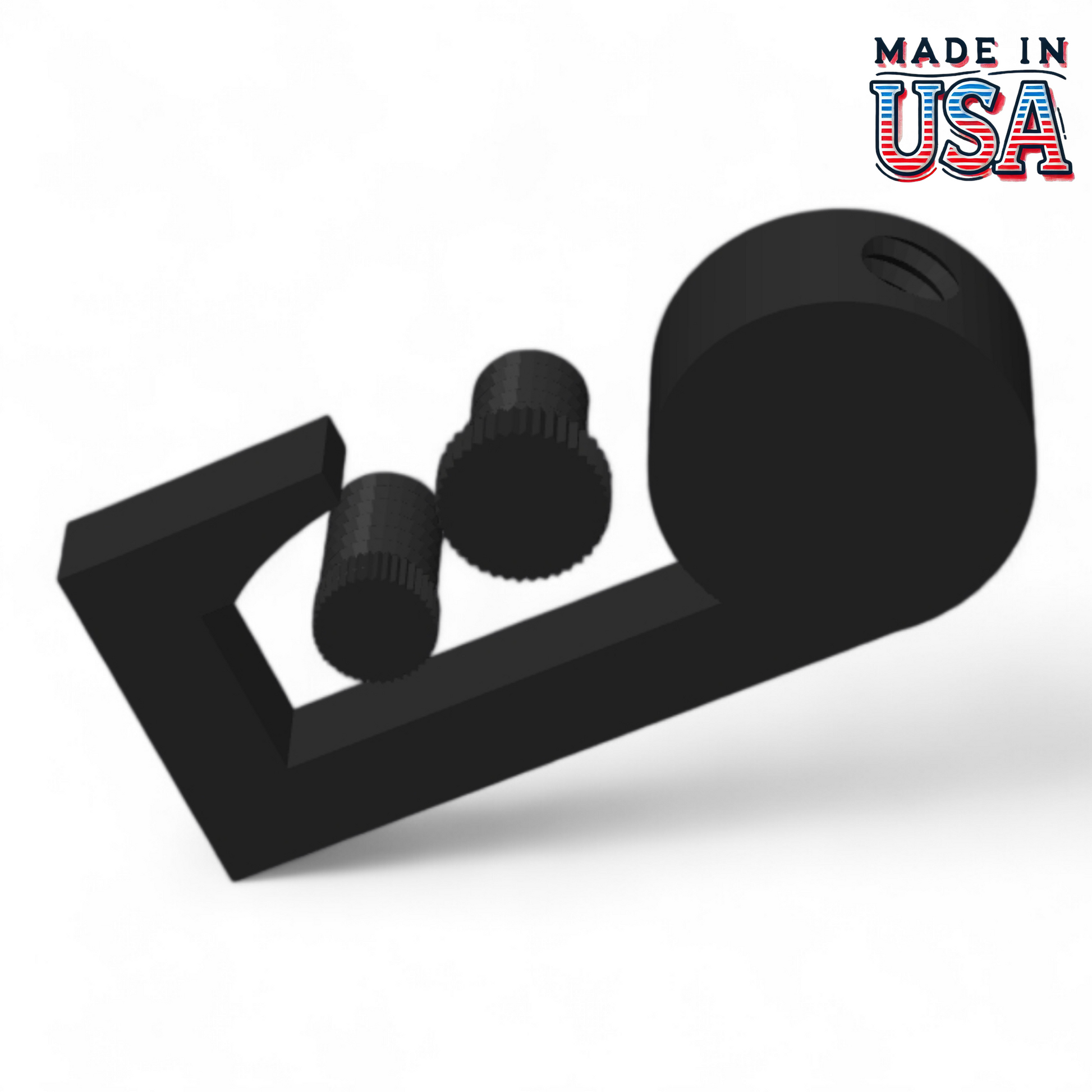

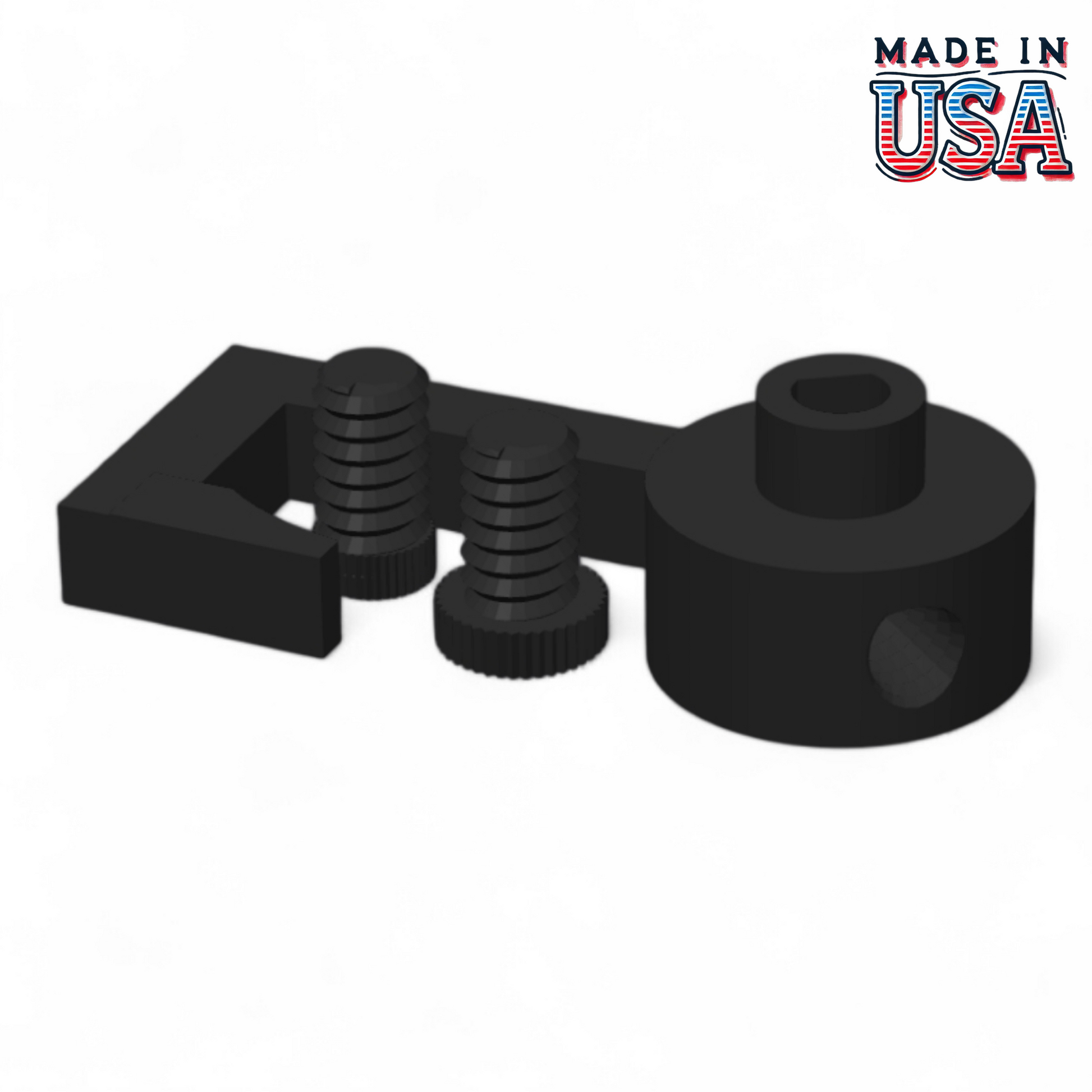

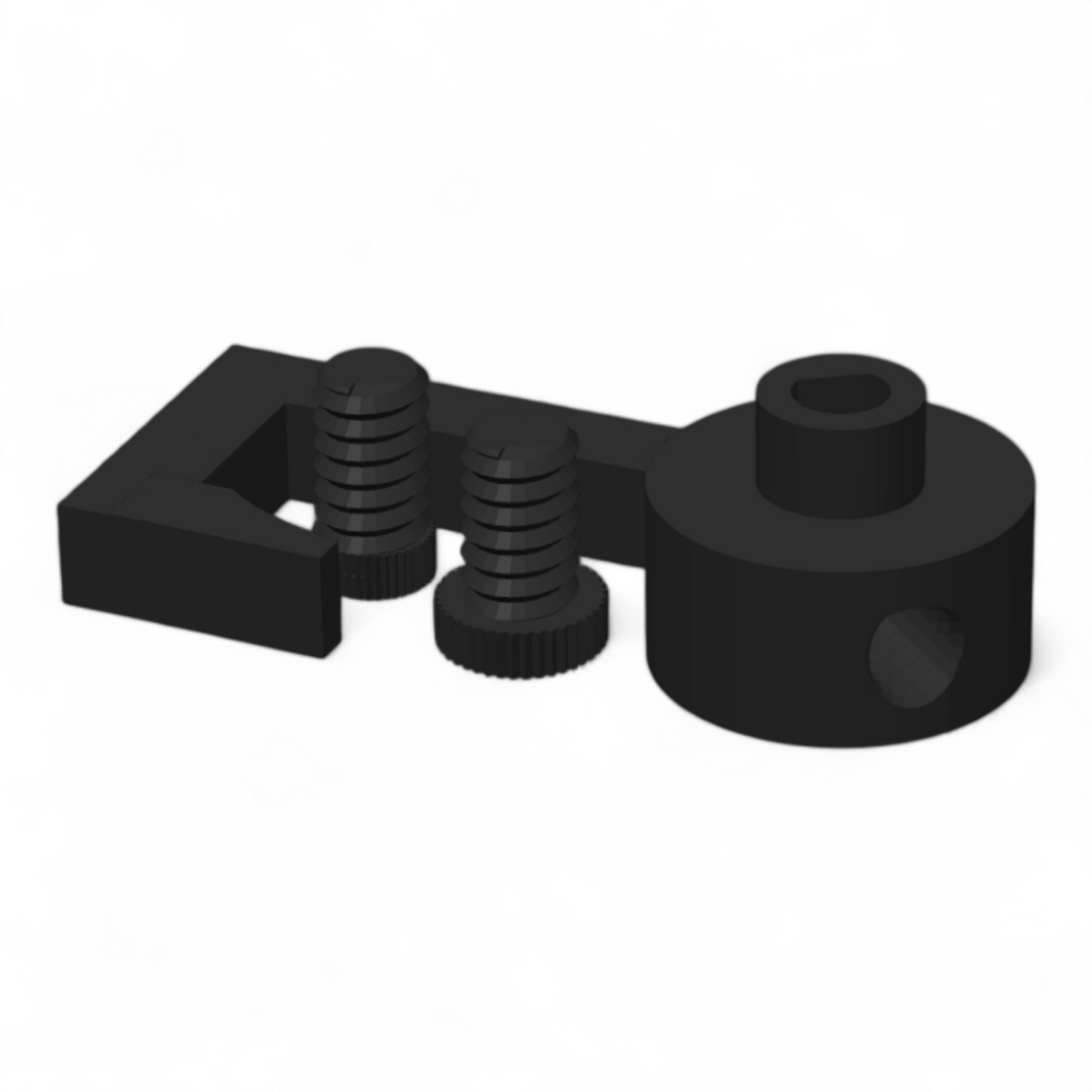

4. Manual Fine-Tuning: Adjust with the front M3 screw and rear integrated screw.

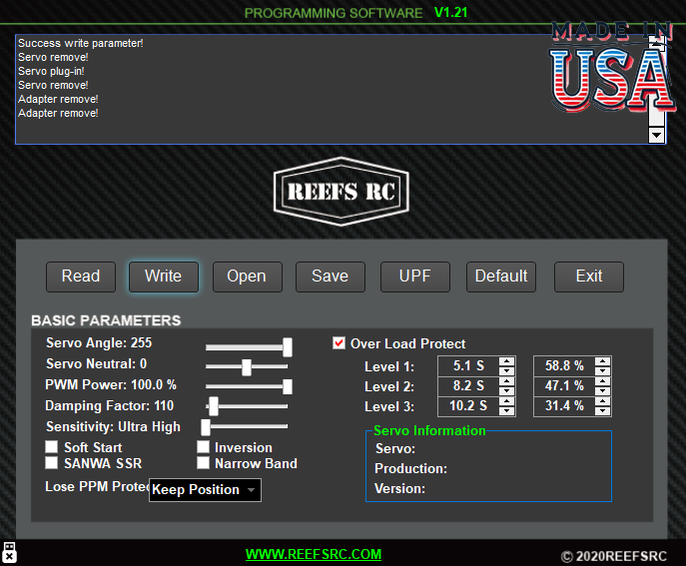

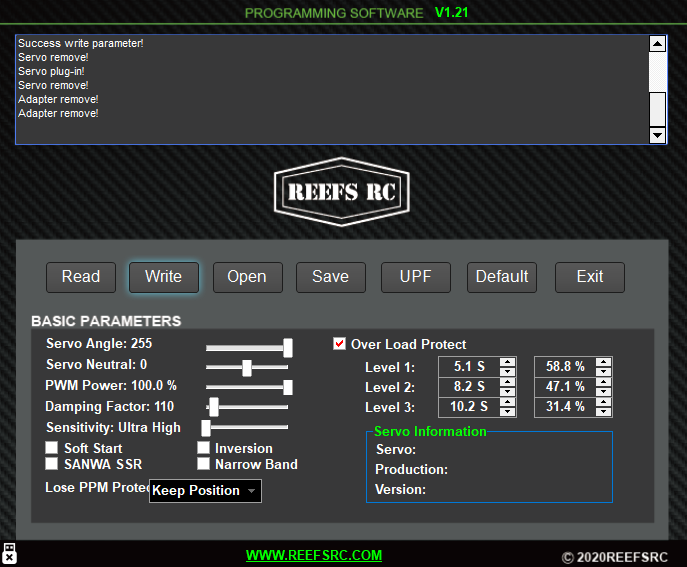

Note: Please see the last picture for the correct steering angle limit on Reefs servos. A minimum of 255° of servo angle is required.

Copyright Notice: All designs are protected under copyright laws. Unauthorized distribution or sale is prohibited without prior written consent.

RCCS Flysky NB4 Noble Rear Steer Knob © 2024 by RcCapraSolutions is licensed under CC BY-NC-ND 4.0
